STRATO-Apex CMM CNC MITUTOYO

Description:

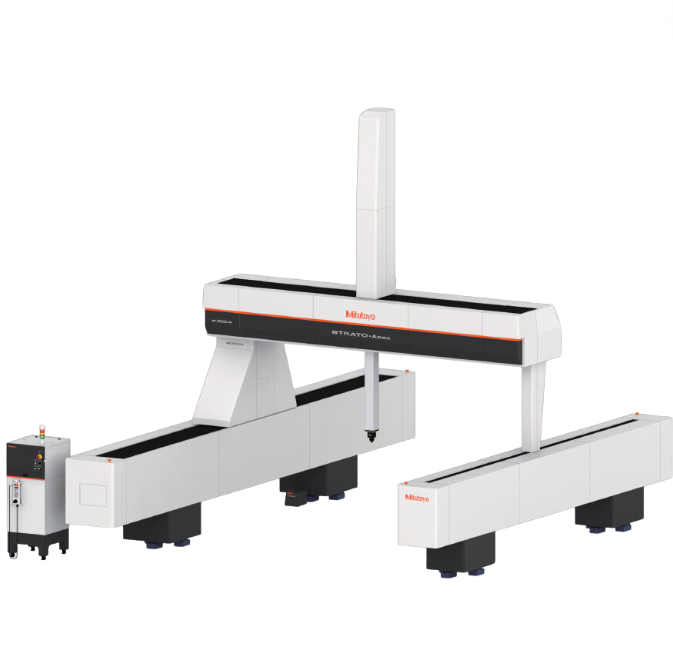

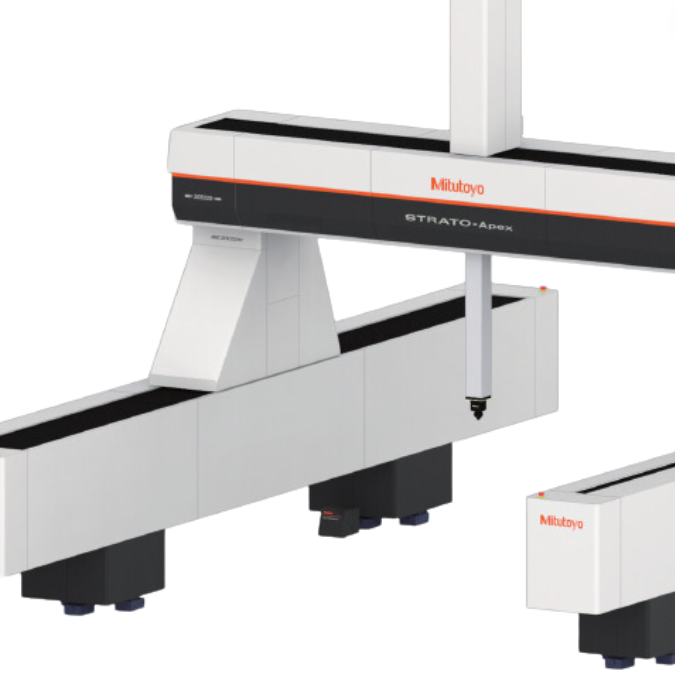

The STRATO-Apex series is a CNC CMM uses the standard Mitutoyo structure in large machines that are designed to measure large and heavy workpieces with high accuracy. The image below gives a good idea of ​​the size of the machine. The measurement accuracy and traversing speed are the highest in the world in the X-axis measurement range of 2000mm and 3000mm. High-accuracy linear encoders (made in Mitutoyo) are integrated into the length measurement units used for position detection. Its excellent position detection capacity is what makes the control of these highly accurate devices possible. The series also applies a multitude of technologies regarding structure, control, component processing, assembly among other aspects that enable large CMMs to provide high accuracy measurements. These series are equipped with a system to automatically restore accuracy deterioration (MOVAC) as a standard feature caused by base deformation. Equipped with a temperature compensation system that guarantees the specified accuracy within the wide range of 18 to 22 °C under certain environmental conditions, although ideally high-accuracy CMMs should be installed in a temperature-controlled space. Safety devices such as a Z-axis beam sensor, tape switch and area sensor are available as optional.

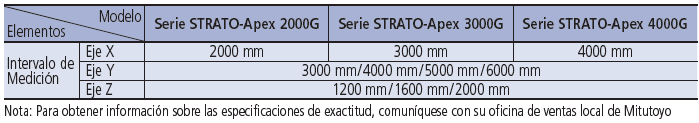

Specifications:
